DESCRIPTIONS/ MÔ TẢ:

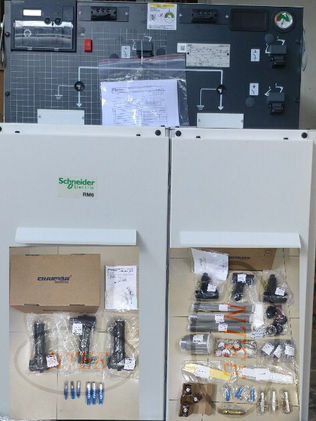

RING MAIN UNIT 24kV, 630A, 20kA/1s, INDOOR TYPE, NON-EXTENSIBLE, 2 MODULES, SCHNEIDER RM6 NE-DI, IEC 62271-200 STANDARD.//

TỦ HỢP BỘ TRUNG THẾ RMU 24kV, 630A, 20kA/1s, SỬ DỤNG TRONG NHÀ, KHÔNG MỞ RỘNG, 2 NGĂN, SCHNEIDER RM6 NE-DI, TIÊU CHUẨN ĐIỆN LỰC IEC 62271-200.



- Manufacturer/ Country: Schneider/China

- Standard: IEC62271-200

- Application type: Intdoor, Metal enclosed

- Extensible Function: Non-Extensible

- Protection class: IP67

- Interrupter: SF6 Gas

- Operrating voltage: 22kV

- Rated Voltage: 24kV

- Frequency: 50Hz

- Rated impulse withstandvoltage 1,2/50µs: 125kV

- Rated withstand voltage at frequency 50Hz/1min (kV rms): 50kV

- Short time withstand current Ik (kArms/1sec): 20kA/1s

- Making Capacity Ima (kA peak): 40kA

- Protection relay (50/51-50/51N) type VIP 400

- Safety protection for operatoraccordance IEC 62271-200 standard: IAC AFL



* Accessories: Including MV Plug-in connectorfor all modules

• MV Separable connector TEE type 3x240sqmm for each LBS Incomming Feeder, I module 24kV-630A: 1 set.

• MV Separable connector TEE 3x70-120 sqmm for CB 200A, D module 24kV-200A: 1 set
